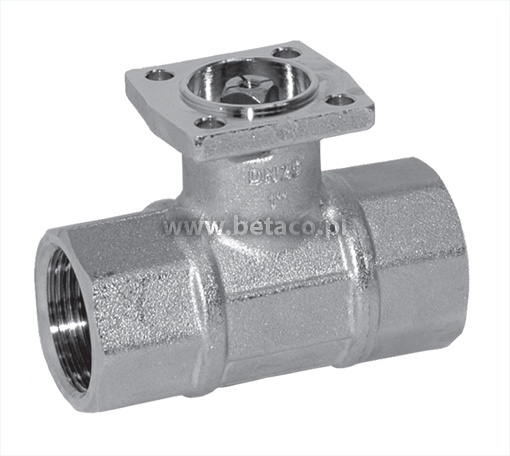

R2.. Belimo Kulowe zawory regulacyjne DN10...DN50, przelotowe
Karta PDF Wyślij zapytanie
Zawory kulowe serii R przeznaczone są do regulacji przepływu gorącej lub zimnej wody oraz roztworów glikolu w odpowiedzi na sygnał otrzymywany ze sterownika w systemach grzewczych, wentylacyjnych lub klimatyzacyjnych.
Cechy
- Niklowany korpus, odkuwka mosiężna
- Konfiguracja przelotowa, 3-drogowa
- Gwint wewnętrzny
- Średnice nominalne DN10...DN50
- Zakres kvs 0,25...40
- Temperatura czynnika 5...110°C
- Medium moda zimna i gorąca, woda z dodatkiem maks. 50% obj. glikolu
- Charakterystyka stałoprocentowa
- Nie przepuszcza pęcherzyków powietrza
Tabela doboru typu
|
Kod zaworu |
DN |
DN |
Kvs |
Ciśnienie dopuszczalne |
|
R209 |
15 |
¹/₂ |
0.63 |
4140 |
|
R210 |
15 |
¹/₂ |
1 |
4140 |
|
R211 |
15 |
¹/₂ |
1.6 |
4140 |
|
R212 |
15 |
¹/₂ |
2.5 |
4140 |
|
R213 |
15 |
¹/₂ |
4 |
4140 |
|
R214 |
15 |
¹/₂ |
6.3 |
4140 |
|
R217 |
20 |
³/₄ |
4 |
4140 |
|
R218 |
20 |
³/₄ |
6.3 |
4140 |
|
R219 |
20 |
³/₄ |
8.6 |
4140 |
|
R222 |
25 |
1 |
6.3 |
4140 |
|
R223 |
25 |
1 |
10 |
4140 |
|
R224 |
25 |
1 |
16 |
4140 |
|
R229 |
32 |
1¹/₄ |
10 |
4140 |
|
R231 |
32 |
1¹/₄ |
16 |
2760 |
|
R238 |
40 |
1¹/₂ |
16 |
2760 |
|
R239 |
40 |
1¹/₂ |
25 |
2760 |
|
R248 |
50 |
2 |
25 |
2760 |
|
R249 |
50 |
2 |
40 |
2760 |
Współpraca z siłownikami, sterowanie 3-punktowe
|
Sterowanie |
3-punktowe |
||||||||||
|
Zasilanie |
24 V |
230 V |
|||||||||
|
Typ siłownika |
TR24 |
LR24A |
NR24A |
SR24A |
TR230-3 |
LR230A |
NR230A |
SR230A |
|||
|
Moment obrotowy |
2 Nm |
5 Nm |
10 Nm |
20 Nm |
2 Nm |
5 Nm |
10 Nm |
20 Nm |
|||
|
Kod zaworu |
DN |
Kvs |
2-drogowy, gwint wewnętrzny |
||||||||
|
R209 |
15 |
0,63 |
l |
l |
l |
l |
l |
l |
l |
l |
|
|
R210 |
15 |
1 |
l |
l |
l |
l |
l |
l |
l |
l |
|
|
R211 |
15 |
1,6 |
l |
l |
l |
l |
l |
l |
l |
l |
|
|
R212 |
15 |
2,5 |
l |
l |
l |
l |
l |
l |
l |
l |
|
|
R213 |
15 |
4 |
l |
l |
l |
l |
l |
l |
l |
l |
|
|
R214 |
15 |
6,3 |
l |
l |
l |
l |
l |
l |
l |
l |
|
|
R217 |
20 |
4 |
l |
l |
l |
l |
l |
l |
l |
l |
|
|
R218 |
20 |
6,3 |
l |
l |
l |
l |
l |
l |
l |
l |
|
|
R219 |
20 |
8,6 |
l |
l |
l |
l |
l |
l |
l |
l |
|
|
R222 |
25 |
6,3 |
- |
l |
l |
l |
- |
l |
l |
l |
|
|
R223 |
25 |
10 |
- |
l |
l |
l |
- |
l |
l |
l |
|
|
R224 |
25 |
16 |
- |
l |
l |
l |
- |
l |
l |
l |
|
|
R229 |
32 |
10 |
- |
l |
l |
l |
- |
l |
l |
l |
|
|
R231 |
32 |
16 |
- |
- |
l |
l |
- |
- |
l |
l |
|
|
R238 |
40 |
16 |
- |
- |
l |
l |
- |
- |
l |
l |
|
|
R239 |
40 |
25 |
- |
- |
l |
l |
- |
- |
l |
l |
|
|
R248 |
50 |
25 |
- |
- |
l |
l |
- |
- |
l |
l |
|
|
R249 |
50 |
40 |
- |
- |
l |
l |
- |
- |
l |
l |
|
Współpraca z siłownikami, sterowanie analogowe
|
Sterowanie |
Analogowe |
|||||||
|
Zasilanie |
24 V |
|||||||
|
Typ siłownika |
TR24-SR |
LR24A-SR |
LRC24A-SR |
NR24A-SR |
NRC24A-SR |
SR24A-SR |
||
|
Moment obrotowy |
2 Nm |
5 Nm |
5 Nm |
10 Nm |
10 Nm |
20 Nm |
||
|
Kod zaworu |
DN |
Kvs |
2-drogowy, gwint wewnętrzny |
|||||
|
R209 |
15 |
0,63 |
l |
l |
l |
l |
l |
l |
|
R210 |
15 |
1 |
l |
l |
l |
l |
l |
l |
|
R211 |
15 |
1,6 |
l |
l |
l |
l |
l |
l |
|
R212 |
15 |
2,5 |
l |
l |
l |
l |
l |
l |
|
R213 |
15 |
4 |
l |
l |
l |
l |
l |
l |
|
R214 |
15 |
6,3 |
l |
l |
l |
l |
l |
l |
|
R217 |
20 |
4 |
l |
l |
l |
l |
l |
l |
|
R218 |
20 |
6,3 |
l |
l |
l |
l |
l |
l |
|
R219 |
20 |
8,6 |
l |
l |
l |
l |
l |
l |
|
R222 |
25 |
6,3 |
|
l |
l |
l |
l |
l |
|
R223 |
25 |
10 |
|
l |
l |
l |
l |
l |
|
R224 |
25 |
16 |
|
l |
l |
l |
l |
l |
|
R229 |
32 |
10 |
|
l |
l |
l |
l |
l |
|
R231 |
32 |
16 |
|
|
|
l |
l |
l |
|
R238 |
40 |
16 |
|
|
|
l |
l |
l |
|
R239 |
40 |
25 |
|
|
|
l |
l |
l |
|
R248 |
50 |
25 |
|
|
|
l |
l |
l |
|
R249 |
50 |
40 |
|
|
|
l |
l |
l |
